伟创伺服电机 V7E系列伺服电机
V7E系列电机产品标配23位多圈绝对值编码器，此外还有17位单多圈绝对值编码器类型可供选择，电机采用10极12槽的结构和IP67级的防护优化，再结合全新的磁路设计与整体真空灌胶的生产工艺，使得其有良好的运行性能和过硬的质量，具体可表现为：生热小、防护强、尺寸短、刚度高、噪音小。应用于电子制造、数控、木工、机器人、包装、纺织、锂电、物流等众多行业

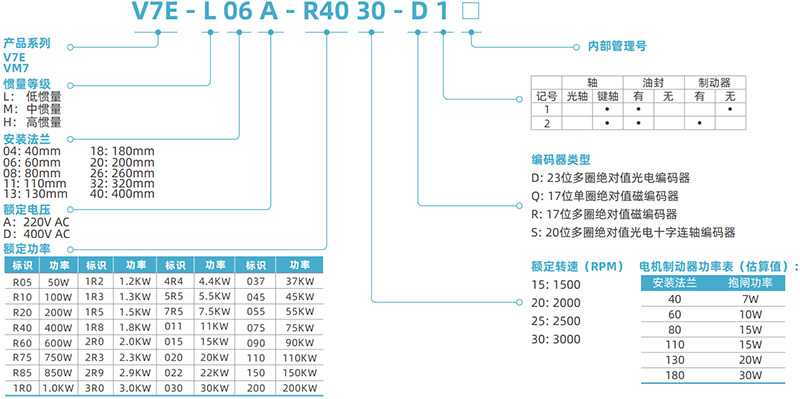

伟创伺服电机 V7E系列伺服电机参数选型
伟创伺服电机 V7E系列伺服电机型号参考
| 伟创伺服电机型号 | 法兰框号 | 额定功率 |
| V7E-L04A-R1030-D1 | 40mm | 100W |
| V7E-L04A-R1030-D2 | 40mm | 100W |
| V7E-L04A-R1030-Q1 | 40mm | 100W |
| V7E-L04A-R1030-Q2 | 40mm | 100W |
| V7E-L04A-R1030-R1 | 40mm | 100W |
| V7E-L04A-R1030-R2 | 40mm | 100W |
| V7E-L06A-R2030-D1 | 60mm | 200W |
| V7E-L06A-R2030-D2 | 60mm | 200W |
| V7E-L06A-R2030-Q1 | 60mm | 200W |
| V7E-L06A-R2030-Q2 | 60mm | 200W |
| V7E-L06A-R2030-R1 | 60mm | 200W |
| V7E-L06A-R2030-R2 | 60mm | 200W |
| V7E-L06A-R4030-D1 | 60mm | 400W |
| V7E-L06A-R4030-D2 | 60mm | 400W |
| V7E-L06A-R4030-Q1 | 60mm | 400W |
| V7E-L06A-R4030-Q2 | 60mm | 400W |
| V7E-L06A-R4030-R1 | 60mm | 400W |
| V7E-L06A-R4030-R2 | 60mm | 400W |
| V7E-L06A-R6030-D1 | 60mm | 600W |
| V7E-L06A-R6030-D2 | 60mm | 600W |
| V7E-L06A-R6030-Q1 | 60mm | 600W |
| V7E-L06A-R6030-Q2 | 60mm | 600W |
| V7E-L06A-R6030-R1 | 60mm | 600W |
| V7E-L06A-R6030-R2 | 60mm | 600W |
| V7E-L08A-1R030-D1 | 80mm | 1KW |
| V7E-L08A-1R030-D2 | 80mm | 1KW |
| V7E-L08A-1R030-Q1 | 80mm | 1KW |
| V7E-L08A-1R030-Q2 | 80mm | 1KW |
| V7E-L08A-1R030-R1 | 80mm | 1KW |
| V7E-L08A-1R030-R2 | 80mm | 1KW |
| V7E-L08A-R7520-D1L | 80mm | 750W |
| V7E-L08A-R7520-D2L | 80mm | 750W |
| V7E-L08A-R7520-Q1L | 80mm | 750W |
| V7E-L08A-R7520-Q2L | 80mm | 750W |
| V7E-L08A-R7520-R1L | 80mm | 750W |
| V7E-L08A-R7520-R2L | 80mm | 750W |
| V7E-L08A-R7530-D1 | 80mm | 750W |
| V7E-L08A-R7530-D1L | 80mm | 750W |
| V7E-L08A-R7530-D2 | 80mm | 750W |
| V7E-L08A-R7530-D2L | 80mm | 750W |
| V7E-L08A-R7530-Q1 | 80mm | 750W |
| V7E-L08A-R7530-Q1L | 80mm | 750W |
| V7E-L08A-R7530-Q2 | 80mm | 750W |
| V7E-L08A-R7530-Q2L | 80mm | 750W |
| V7E-L08A-R7530-R1 | 80mm | 750W |
| V7E-L08A-R7530-R1L | 80mm | 750W |
| V7E-L08A-R7530-R2 | 80mm | 750W |
| V7E-L08A-R7530-R2L | 80mm | 750W |
| V7E-M06A-R4030-D1 | 60mm | 400W |
| V7E-M06A-R4030-D2 | 60mm | 400W |
| V7E-M06A-R4030-Q1 | 60mm | 400W |
| V7E-M06A-R4030-Q2 | 60mm | 400W |
| V7E-M06A-R4030-R1 | 60mm | 400W |
| V7E-M06A-R4030-R2 | 60mm | 400W |
| V7E-M08A-R7530-D1 | 80mm | 750W |
| V7E-M08A-R7530-D1L | 80mm | 750W |
| V7E-M08A-R7530-D2 | 80mm | 750W |
| V7E-M08A-R7530-D2L | 80mm | 750W |
| V7E-M08A-R7530-Q1 | 80mm | 750W |
| V7E-M08A-R7530-Q1L | 80mm | 750W |
| V7E-M08A-R7530-Q2 | 80mm | 750W |
| V7E-M08A-R7530-Q2L | 80mm | 750W |
| V7E-M08A-R7530-R1 | 80mm | 750W |
| V7E-M08A-R7530-R1L | 80mm | 750W |
| V7E-M08A-R7530-R2 | 80mm | 750W |
| V7E-M08A-R7530-R2L | 80mm | 750W |
| V7E-M11A-1R230-D1 | 110mm | 1.2KW |
| V7E-M11A-1R230-D2 | 110mm | 1.2KW |
| V7E-M11A-1R230-Q1 | 110mm | 1.2KW |
| V7E-M11A-1R230-Q2 | 110mm | 1.2KW |
| V7E-M11A-1R230-R1 | 110mm | 1.2KW |
| V7E-M11A-1R230-R2 | 110mm | 1.2KW |
| V7E-M11A-1R530-D1 | 110mm | 1.5KW |
| V7E-M11A-1R530-D2 | 110mm | 1.5KW |
| V7E-M11A-1R530-Q1 | 110mm | 1.5KW |
| V7E-M11A-1R530-Q2 | 110mm | 1.5KW |
| V7E-M11A-1R530-R1 | 110mm | 1.5KW |
| V7E-M11A-1R530-R2 | 110mm | 1.5KW |
| V7E-M11A-1R830-D1 | 110mm | 1.8KW |
| V7E-M11A-1R830-D2 | 110mm | 1.8KW |
| V7E-M11A-1R830-Q1 | 110mm | 1.8KW |
| V7E-M11A-1R830-Q2 | 110mm | 1.8KW |
| V7E-M11A-1R830-R1 | 110mm | 1.8KW |
| V7E-M11A-1R830-R2 | 110mm | 1.8KW |
| V7E-M13A-1R020-D1 | 130mm | 1KW |
| V7E-M13A-1R020-D2 | 130mm | 1KW |
| V7E-M13A-1R020-Q1 | 130mm | 1KW |
| V7E-M13A-1R020-Q2 | 130mm | 1KW |
| V7E-M13A-1R020-R1 | 130mm | 1KW |
| V7E-M13A-1R020-R2 | 130mm | 1KW |
| V7E-M13A-1R315-D1 | 130mm | 1.3KW |
| V7E-M13A-1R315-D2 | 130mm | 1.3KW |
| V7E-M13A-1R315-Q1 | 130mm | 1.3KW |
| V7E-M13A-1R315-Q2 | 130mm | 1.3KW |
| V7E-M13A-1R315-R1 | 130mm | 1.3KW |
| V7E-M13A-1R315-R2 | 130mm | 1.3KW |
| V7E-M13A-1R520-D1 | 130mm | 1.5KW |
| V7E-M13A-1R520-D2 | 130mm | 1.5KW |
| V7E-M13A-1R520-Q1 | 130mm | 1.5KW |
| V7E-M13A-1R520-Q2 | 130mm | 1.5KW |
| V7E-M13A-1R520-R1 | 130mm | 1.5KW |
| V7E-M13A-1R520-R2 | 130mm | 1.5KW |
| V7E-M13A-1R815-D1 | 130mm | 1.8KW |
| V7E-M13A-1R815-D1B | 130mm | 1.8KW |
| V7E-M13A-1R815-D2 | 130mm | 1.8KW |
| V7E-M13A-1R815-D2B | 130mm | 1.8KW |
| V7E-M13A-1R815-Q1 | 130mm | 1.8KW |
| V7E-M13A-1R815-Q1B | 130mm | 1.8KW |
| V7E-M13A-1R815-Q2 | 130mm | 1.8KW |
| V7E-M13A-1R815-Q2B | 130mm | 1.8KW |
| V7E-M13A-1R815-R1 | 130mm | 1.8KW |
| V7E-M13A-1R815-R1B | 130mm | 1.8KW |
| V7E-M13A-1R815-R2 | 130mm | 1.8KW |
| V7E-M13A-1R815-R2B | 130mm | 1.8KW |
| V7E-M13A-2R020-D1 | 130mm | 2KW |
| V7E-M13A-2R020-D2 | 130mm | 2KW |
| V7E-M13A-2R020-Q1 | 130mm | 2KW |
| V7E-M13A-2R020-Q2 | 130mm | 2KW |
| V7E-M13A-2R020-R1 | 130mm | 2KW |
| V7E-M13A-2R020-R2 | 130mm | 2KW |
| V7E-M13A-2R315-D1L | 130mm | 2.3KW |
| V7E-M13A-2R315-D2L | 130mm | 2.3KW |
| V7E-M13A-2R315-Q1L | 130mm | 2.3KW |
| V7E-M13A-2R315-Q2L | 130mm | 2.3KW |
| V7E-M13A-2R315-R1L | 130mm | 2.3KW |
| V7E-M13A-2R315-R2L | 130mm | 2.3KW |
| V7E-M13A-2R625-D1L | 130mm | 2.6KW |
| V7E-M13A-2R625-D2L | 130mm | 2.6KW |
| V7E-M13A-2R625-Q1L | 130mm | 2.6KW |
| V7E-M13A-2R625-Q2L | 130mm | 2.6KW |
| V7E-M13A-2R625-R1L | 130mm | 2.6KW |
| V7E-M13A-2R625-R2L | 130mm | 2.6KW |
| V7E-M13A-3R020-D1 | 130mm | 3KW |
| V7E-M13A-3R020-D1L | 130mm | 3KW |
| V7E-M13A-3R020-D2 | 130mm | 3KW |
| V7E-M13A-3R020-Q1 | 130mm | 3KW |
| V7E-M13A-3R020-Q2 | 130mm | 3KW |
| V7E-M13A-3R020-R1 | 130mm | 3KW |
| V7E-M13A-3R020-R2 | 130mm | 3KW |
| V7E-M13A-R8515-D1 | 130mm | 850W |
| V7E-M13A-R8515-D1B | 130mm | 850W |
| V7E-M13A-R8515-D2 | 130mm | 850W |
| V7E-M13A-R8515-D2B | 130mm | 850W |
| V7E-M13A-R8515-Q1 | 130mm | 850W |
| V7E-M13A-R8515-Q1B | 130mm | 850W |
| V7E-M13A-R8515-Q2 | 130mm | 850W |
| V7E-M13A-R8515-Q2B | 130mm | 850W |
| V7E-M13A-R8515-R1 | 130mm | 850W |
| V7E-M13A-R8515-R1B | 130mm | 850W |
| V7E-M13A-R8515-R2 | 130mm | 850W |
| V7E-M13A-R8515-R2B | 130mm | 850W |
| V7E-M13D-1R020-D1 | 130mm | 1KW |
| V7E-M13D-1R020-D2 | 130mm | 1KW |
| V7E-M13D-1R020-Q1 | 130mm | 1KW |
| V7E-M13D-1R020-Q2 | 130mm | 1KW |
| V7E-M13D-1R020-R1 | 130mm | 1KW |
| V7E-M13D-1R020-R2 | 130mm | 1KW |
| V7E-M13D-1R315-D1 | 130mm | 1.3KW |
| V7E-M13D-1R315-D2 | 130mm | 1.3KW |
| V7E-M13D-1R315-Q1 | 130mm | 1.3KW |
| V7E-M13D-1R315-Q2 | 130mm | 1.3KW |
| V7E-M13D-1R315-R1 | 130mm | 1.3KW |
| V7E-M13D-1R315-R2 | 130mm | 1.3KW |
| V7E-M13D-1R520-D1 | 130mm | 1.5KW |
| V7E-M13D-1R520-D2 | 130mm | 1.5KW |
| V7E-M13D-1R520-Q1 | 130mm | 1.5KW |
| V7E-M13D-1R520-Q2 | 130mm | 1.5KW |
| V7E-M13D-1R520-R1 | 130mm | 1.5KW |
| V7E-M13D-1R520-R2 | 130mm | 1.5KW |
| V7E-M13D-1R815-D1 | 130mm | 1.8KW |
| V7E-M13D-1R815-D1B | 130mm | 1.8KW |
| V7E-M13D-1R815-D2 | 130mm | 1.8KW |
| V7E-M13D-1R815-D2B | 130mm | 1.8KW |
| V7E-M13D-1R815-Q1 | 130mm | 1.8KW |
| V7E-M13D-1R815-Q1B | 130mm | 1.8KW |
| V7E-M13D-1R815-Q2 | 130mm | 1.8KW |
| V7E-M13D-1R815-Q2B | 130mm | 1.8KW |
| V7E-M13D-1R815-R1 | 130mm | 1.8KW |
| V7E-M13D-1R815-R1B | 130mm | 1.8KW |
| V7E-M13D-1R815-R2 | 130mm | 1.8KW |
| V7E-M13D-1R815-R2B | 130mm | 1.8KW |
| V7E-M13D-2R020-D1 | 130mm | 2KW |
| V7E-M13D-2R020-D2 | 130mm | 2KW |
| V7E-M13D-2R020-Q1 | 130mm | 2KW |
| V7E-M13D-2R020-Q2 | 130mm | 2KW |
| V7E-M13D-2R020-R1 | 130mm | 2KW |
| V7E-M13D-2R020-R2 | 130mm | 2KW |
| V7E-M13D-2R315-D1L | 130mm | 2.3KW |
| V7E-M13D-2R315-D2L | 130mm | 2.3KW |
| V7E-M13D-2R315-Q1L | 130mm | 2.3KW |
| V7E-M13D-2R315-Q2L | 130mm | 2.3KW |
| V7E-M13D-2R315-R1L | 130mm | 2.3KW |
| V7E-M13D-2R315-R2L | 130mm | 2.3KW |
| V7E-M13D-2R625-D1L | 130mm | 2.6KW |
| V7E-M13D-2R625-D2L | 130mm | 2.6KW |
| V7E-M13D-2R625-Q1L | 130mm | 2.6KW |
| V7E-M13D-2R625-Q2L | 130mm | 2.6KW |
| V7E-M13D-2R625-R1L | 130mm | 2.6KW |
| V7E-M13D-2R625-R2L | 130mm | 2.6KW |
| V7E-M13D-3R020-D1 | 130mm | 3KW |
| V7E-M13D-3R020-D2 | 130mm | 3KW |
| V7E-M13D-3R020-Q1 | 130mm | 3KW |
| V7E-M13D-3R020-Q2 | 130mm | 3KW |
| V7E-M13D-3R020-R1 | 130mm | 3KW |
| V7E-M13D-3R020-R2 | 130mm | 3KW |
| V7E-M13D-3R815-D1F | 130mm | 3.8KW |
| V7E-M13D-3R815-D1 | 130mm | 3.8KW |
| V7E-M13D-3R815-D2 | 130mm | 3.8KW |
| V7E-M13D-3R825-R1 | 130mm | 3.8KW |
| V7E-M13D-3R825-R2 | 130mm | 3.8KW |
| V7E-M13D-R8515-D1 | 130mm | 850W |
| V7E-M13D-R8515-D1B | 130mm | 850W |
| V7E-M13D-R8515-D2 | 130mm | 850W |
| V7E-M13D-R8515-D2B | 130mm | 850W |
| V7E-M13D-R8515-Q1 | 130mm | 850W |
| V7E-M13D-R8515-Q1B | 130mm | 850W |
| V7E-M13D-R8515-Q2 | 130mm | 850W |
| V7E-M13D-R8515-Q2B | 130mm | 850W |
| V7E-M13D-R8515-R1 | 130mm | 850W |
| V7E-M13D-R8515-R1B | 130mm | 850W |
| V7E-M13D-R8515-R2 | 130mm | 850W |
| V7E-M13D-R8515-R2B | 130mm | 850W |
| V7E-M18A-2R915-D1 | 180mm | 2.9KW |
| V7E-M18A-2R915-D2 | 180mm | 2.9KW |
| V7E-M18A-2R915-R1 | 180mm | 2.9KW |
| V7E-M18A-2R915-R2 | 180mm | 2.9KW |
| V7E-M18A-4R415-D1 | 180mm | 4.4KW |
| V7E-M18A-4R415-D2 | 180mm | 4.4KW |
| V7E-M18A-4R415-R1 | 180mm | 4.4KW |
| V7E-M18A-4R415-R2 | 180mm | 4.4KW |
| V7E-M18D-2R915-D1 | 180mm | 2.9KW |
| V7E-M18D-2R915-D1H | 180mm | 2.9KW |
| V7E-M18D-2R915-D2 | 180mm | 2.9KW |
| V7E-M18D-2R915-D2H | 180mm | 2.9KW |
| V7E-M18D-2R915-R1 | 180mm | 2.9KW |
| V7E-M18D-2R915-R2 | 180mm | 2.9KW |
| V7E-M18D-4R415-D1 | 180mm | 4.4KW |
| V7E-M18D-4R415-D1H | 180mm | 4.4KW |
| V7E-M18D-4R415-D2 | 180mm | 4.4KW |
| V7E-M18D-4R415-D2H | 180mm | 4.4KW |
| V7E-M18D-4R415-R1 | 180mm | 4.4KW |
| V7E-M18D-4R415-R2 | 180mm | 4.4KW |
| V7E-M18D-5R515-D1 | 180mm | 5.5KW |
| V7E-M18D-5R515-D1BH | 180mm | 5.5KW |
| V7E-M18D-5R515-D1H | 180mm | 5.5KW |
| V7E-M18D-5R515-D2 | 180mm | 5.5KW |
| V7E-M18D-5R515-D2BH | 180mm | 5.5KW |
| V7E-M18D-5R515-D2H | 180mm | 5.5KW |
| V7E-M18D-5R515-R1 | 180mm | 5.5KW |
| V7E-M18D-5R515-R2 | 180mm | 5.5KW |
| V7E-M18D-7R515-D1 | 180mm | 7.5KW |
| V7E-M18D-7R515-D1BH | 180mm | 7.5KW |
| V7E-M18D-7R515-D1H | 180mm | 7.5KW |
| V7E-M18D-7R515-D2 | 180mm | 7.5KW |
| V7E-M18D-7R515-D2BH | 180mm | 7.5KW |
| V7E-M18D-7R515-D2H | 180mm | 7.5KW |
| V7E-M18D-7R515-R1 | 180mm | 7.5KW |
| V7E-M18D-7R515-R2 | 180mm | 7.5KW |
